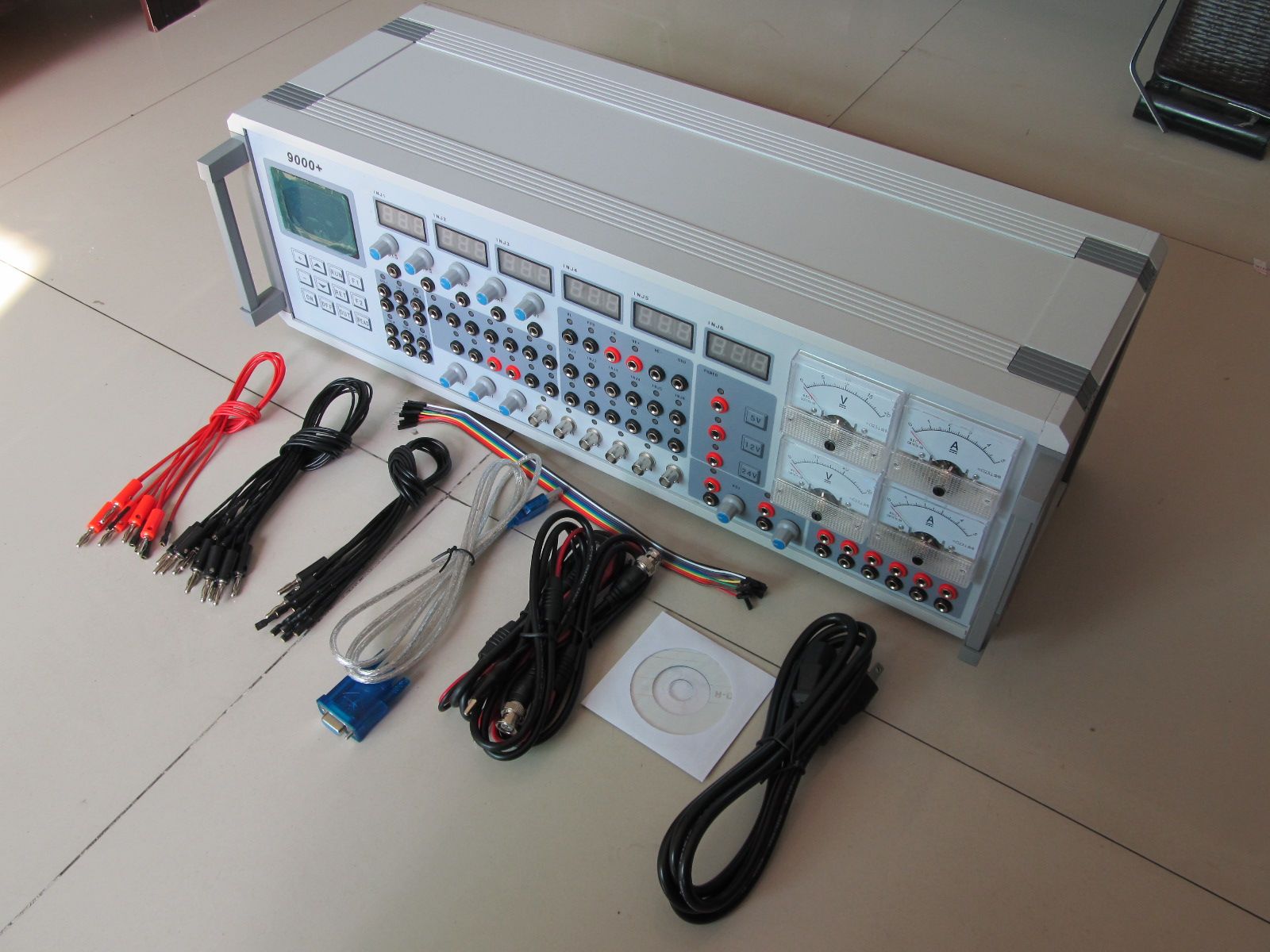

MST9000 is an experts-golden version car ECU repair tool. Supports cars made in Asia, Europe and USA. Astor Piazzolla Tango Etudes For Flute Pdf Programs How To Use Tool Magnetizer. on this page. MST-9000 auto sensor signal simulation tool can support car ECU reparing and key programming. Do you wanna how to use the MST-9000+ auto sensor signal simulation tool? Here, auto diagnostic tool share the use manual with you.
Step1: power on Put mst 9000+ conncted to power source(220v or 110v), all the signal lights will turned on when the power comes on, after few seconds will become like photo shows: Screen shows: Select the first option Shows like: 1, DC signal 2, Exhaust gas 3, RPM signal Step2: Option1, DC signal, press RUN to enter in Displays on port cts, tps map, maf, o2, +b, gnd ect. Will be blinking on those ports. Screen shows output voltage numerical it will shows DC voltage signal when connect cts, tps map, maf, o2 ports(the other end ground joint GND). All the voltage signals can be adjusted by corresponding potentiometer, adjusting range is 0-5v. Option 2, EXHAUST GAS, press RUN to enter, it shows GND and O2 port light flashing, the output signal is O2 signal, signal frequency can be change by + and –from keyboard, change range is 0001-0020,Hz. Option 3, RPM signal: enter the engine speed signal simulation, there are 13 selections of ECU type: Option 3, RPM signal: enter the engine speed signal simulation, there are 13 selections of ECU type: Select one ECU type to enter in, display change ECU output frequency(i.e.speed)adjustable range from 0020 to 2160 Hz, adjust by + and signal output end is +B (power), GND( ground wire), CKP (crankshaft speed signal), A1, A2, +,+,B1.B2, stepping motor signal output end. Step3: Enter option2 ELEMENT DRIVEN Enter ISC VALVE INJECTOR SOLENOID VSS DRIVEN actuator simulation This one is a computer simulation of ECU the execution of the signal 1, Simulation executive ISC VALVE, ECU ISC operation signal comes out from ISC port, stepping motor received ISC output end, make the motor according to the instrument issued instructions operation.
